Price:
$4,499
Overview
- Condition: New vehicle
- Manufacturer: Yamaha
- Model: YDX-MORO
- Version: YDX MORO 05 MEDIUM
- Year: 2024
- Stock #: YEB002
- Type: Electric Bikes
- VIN: 002233
- Exterior colour: Green
Specifications
- Suggested use: All Mountain Class-1 Ebike Off-Road Trail
- Total weight: 23.2kg (51.1lb) (M)
- Size: Small, Medium, Large
- Colours: Forest Green
- Type: Yamaha PW-X3 Class 1 Labeled Centermount
- Technology: Yamaha Quad Sensor with Automatic Support and Walk Assist Modes
- Rate power: 250W (nominal), 500W (maximum)
- Max torque: 85Nm
- Max speed support: 32.2 kph (20mph)
- Support modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
- Output: 500Wh 36V
- Weight: 3 kg (6.61 lbs)
- Technology: Charge-life indicator and Self-diagnosis display
- Re-charge time: 1-hour 80%, 4-hour 100%
- Mounting system: Anti-Vibration Mounting Plate
- Shifters: Shimano DEORE SL-M6100-R
- Front derailleur: N/A
- Rear derailleur: Shimano DEORE RD-M6100-SGS
- Crankarm: PRAXIS E-CRANK ARM 165mm Length
- Chain: KMC eTURBO EPT 122 links
- Cassette: Shimano SLX CS-M7100-12 12-spd (10-51T)
- Chainrings: PRAXIS 36T
- Frame: Yamaha Dual Twin Frame with Tapered Headtube
- Fork: ROCKSHOX REVELATION RC with 160mm of travel and Low-speed Compression adjustment
- Rear shock: ROCKSHOX DELUXE SELECT + with 150mm of travel, 15 clicks of rebound adjustment, 2-position compression adjustment
- Headset: Integrated 1 1/8” (28.6mm)
- Stem: Alloy 4-both faceplate- 35.0 diameter, 40mm length
- Handlebar: Alloy- 35.0mm diameter, 780mm width, 30mm rise
- Seatpost/saddle clamp: RANZX dropper post- 30.9 diameter Travel: (S) 125mm (M) 150mm (L) 170m
- Seatpost collar: Single-bolt 35.0mm
- Saddle: Yamaha anti-slip finish with hand rail tail
- Axles: MAXLE 15MM X 110MM Boost Thru Axle
- Brakes/rotors: MAGURA MT30 (F) 4-Piston (R) 2-Piston 203mm center lock rotor (F/R) Two-finger lever
- Rims: Yamaha 27.5+ Alloy Tubeless tape installed Width: 46mm (outside) 40mm (inside)
- Spokes: 14g alloy SUS304
- Hubs: Anodized Alloy Centerlock brake mount 15x110mm BOOST+ (F) 12x148mm MicroSpline freehub Quick Release Thru Axle Type
- Tires/tubes: MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON
- Grips: VELO Single Ring Lock
Notes
Notes:

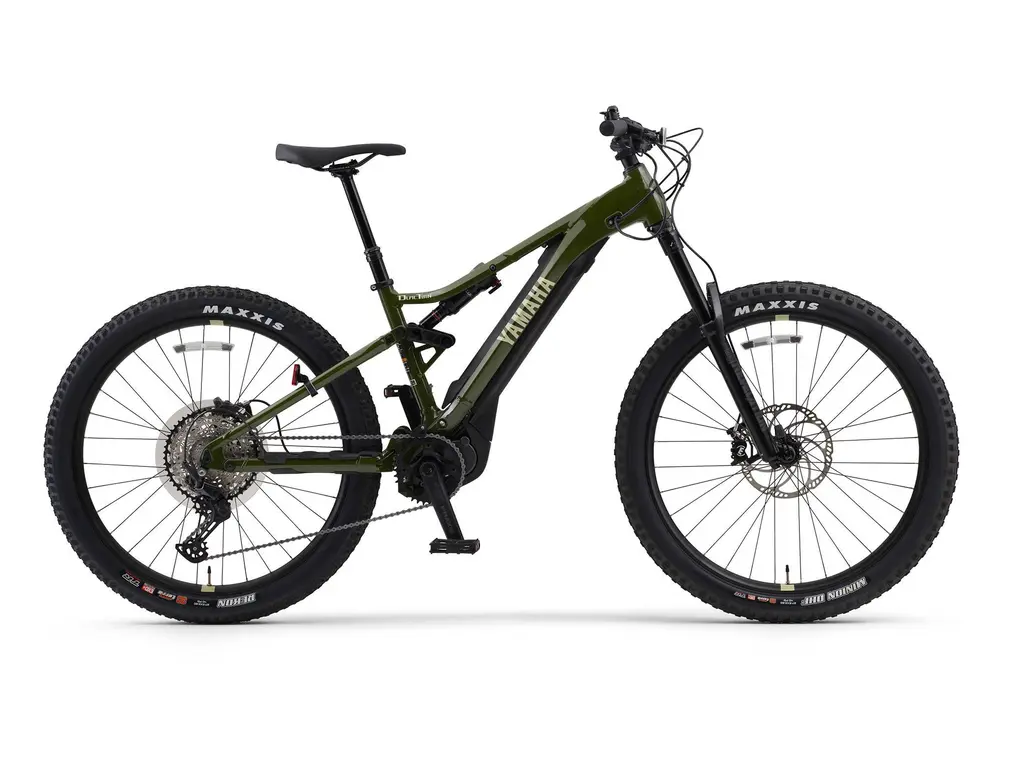

2024 Yamaha YDX-MORO 05 Medium: features and specifications The 2024 Yamaha YDX-MORO 05 in a medium frame size is an all-mountain class-1 electric mountain bike designed for off-road trail use. It features a robust aluminum dual-suspension frame with a unique Dual Twin™ design for enhanced handling, component protection, and a low center of gravity. The bike is powered by the Yamaha PW-X3 motor system, renowned for its power and responsiveness, and is paired with a 500Wh Yamaha battery. Here's a breakdown of its features and specifications: Key features- Yamaha PW-X3 motor: Offers powerful and responsive electric assist for tackling challenging terrain.
- Patented Dual Twin™ frame: Combines hydroforming and forging for precise handling, component protection, and a low center of gravity.
- 160mm fork travel: A RockShox Revelation RC fork provides ample suspension for absorbing bumps and increasing riding confidence.
- 150mm rear travel: A RockShox Deluxe Select+ shock with DebonAir+ air spring ensures a smooth and controlled ride.
- Yamaha Interface X control switch: Ergonomic design provides easy access to 5 support modes (including automatic support), walk assist, and display information.
- Internal cable routing: Minimizes exposure to harsh riding conditions and reduces maintenance needs.
- Integrated dropper post: Allows for quick saddle height adjustments for better control on descents and technical sections.
- Maxxis 27.5x2.6 tires: Front Minion DHF and rear Rekon tires provide excellent traction and handling on various trails.
- Frame: Yamaha Dual Twin™ Frame.
- Fork: RockShox Revelation RC, 160mm Travel.
- Shock: RockShox Deluxe Select+, 150mm travel.
- Motor: Yamaha PW-X3 Class 1.
- Battery: Yamaha 500Wh Lithium-Ion.
- Display: Yamaha Interface X.
- Shifters: Shimano Deore SL-M6100-R.
- Rear Derailleur: Shimano Deore RD-M6100-SGS.
- Cassette: Shimano SLX CS-M7100-12, 12-speed (10-51T).
- Crankarm: Praxis E-Crank arm.
- Chainrings: Praxis 36T.
- Brakes: Magura MT30, Front: 4-piston, Rear: 2-piston.
- Brake Rotors: Front / Rear: 8 in. (203 mm).
- Rims: Yamaha 27.5+ alloy.
- Tires: Maxxis 27.5x2.6.
- Total Weight: 51.1 lbs.
Price may not include freight, setup and other applicable fee.
