Price Upon Request
Sold
Overview
- Condition: New vehicle
- Manufacturer: Yamaha
- Model: YDX-MORO
- Version: YDX MORO 05 MEDIUM
- Year: 2024
- Stock #: YEB001
- Type: Electric Bikes
- VIN: 002327
- Exterior colour: Green
Specifications
- Suggested use: All Mountain Class-1 Ebike Off-Road Trail
- Total weight: 23.2kg (51.1lb) (M)
- Size: Small, Medium, Large
- Colours: Forest Green
- Type: Yamaha PW-X3 Class 1 Labeled Centermount
- Technology: Yamaha Quad Sensor with Automatic Support and Walk Assist Modes
- Rate power: 250W (nominal), 500W (maximum)
- Max torque: 85Nm
- Max speed support: 32.2 kph (20mph)
- Support modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
- Output: 500Wh 36V
- Weight: 3 kg (6.61 lbs)
- Technology: Charge-life indicator and Self-diagnosis display
- Re-charge time: 1-hour 80%, 4-hour 100%
- Mounting system: Anti-Vibration Mounting Plate
- Shifters: Shimano DEORE SL-M6100-R
- Front derailleur: N/A
- Rear derailleur: Shimano DEORE RD-M6100-SGS
- Crankarm: PRAXIS E-CRANK ARM 165mm Length
- Chain: KMC eTURBO EPT 122 links
- Cassette: Shimano SLX CS-M7100-12 12-spd (10-51T)
- Chainrings: PRAXIS 36T
- Frame: Yamaha Dual Twin Frame with Tapered Headtube
- Fork: ROCKSHOX REVELATION RC with 160mm of travel and Low-speed Compression adjustment
- Rear shock: ROCKSHOX DELUXE SELECT + with 150mm of travel, 15 clicks of rebound adjustment, 2-position compression adjustment
- Headset: Integrated 1 1/8” (28.6mm)
- Stem: Alloy 4-both faceplate- 35.0 diameter, 40mm length
- Handlebar: Alloy- 35.0mm diameter, 780mm width, 30mm rise
- Seatpost/saddle clamp: RANZX dropper post- 30.9 diameter Travel: (S) 125mm (M) 150mm (L) 170m
- Seatpost collar: Single-bolt 35.0mm
- Saddle: Yamaha anti-slip finish with hand rail tail
- Axles: MAXLE 15MM X 110MM Boost Thru Axle
- Brakes/rotors: MAGURA MT30 (F) 4-Piston (R) 2-Piston 203mm center lock rotor (F/R) Two-finger lever
- Rims: Yamaha 27.5+ Alloy Tubeless tape installed Width: 46mm (outside) 40mm (inside)
- Spokes: 14g alloy SUS304
- Hubs: Anodized Alloy Centerlock brake mount 15x110mm BOOST+ (F) 12x148mm MicroSpline freehub Quick Release Thru Axle Type
- Tires/tubes: MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON
- Grips: VELO Single Ring Lock
Notes
Notes:

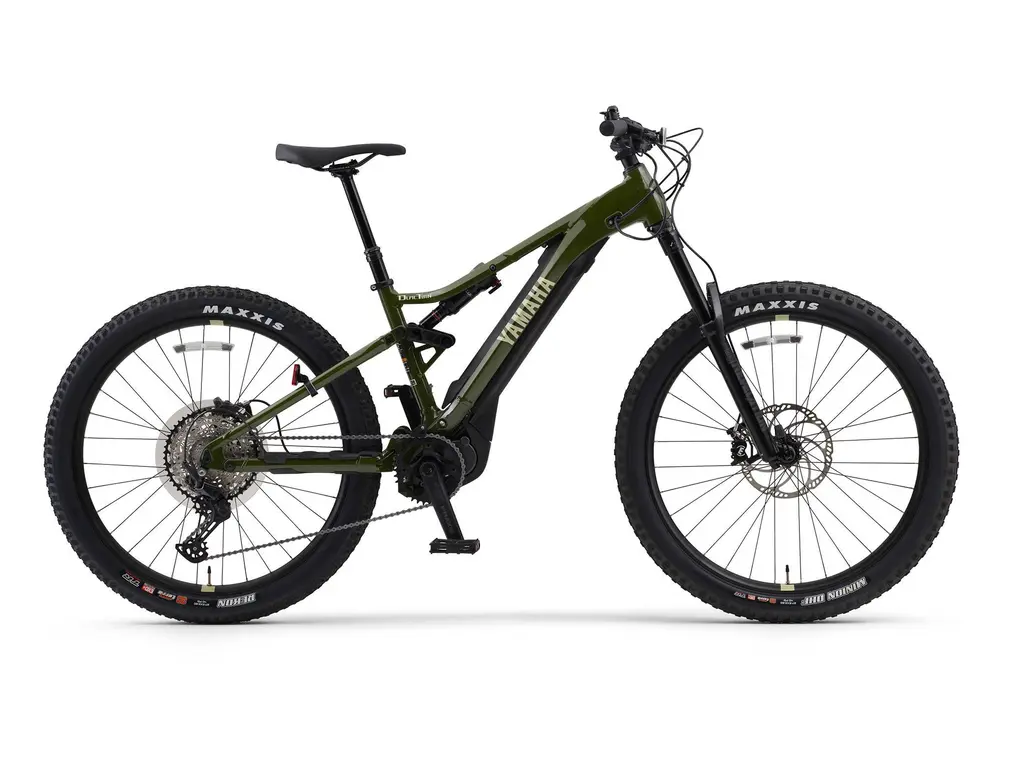

The Yamaha YDX-MORO 05 is an all-mountain electric mountain bike, and the "Medium" refers to its frame size. This model, suggested for all-mountain and off-road trail use, is available in Forest Green. Here's a summary of the key features and specifications for the Yamaha YDX-MORO 05 - Medium: Frame & Components:- Frame: Yamaha Dual Twin Frame, designed for enhanced handling and component protection, with a tapered headtube, internal cable routing, and integrated Yamaha speed sensor harness.
- Fork: RockShox Revelation RC with 160mm of travel, designed for smooth bump absorption on challenging trails.
- Rear Shock: RockShox Deluxe Select + with 150mm of travel and adjustable rebound and compression.
- Drivetrain: Shimano Deore 12-speed with a 10-51T cassette.
- Brakes: Magura MT30 hydraulic disc brakes with 4-piston front and 2-piston rear calipers, and 203mm rotors.
- Wheels: Yamaha 27.5+ alloy rims with Maxxis 27.5x2.6 tires (Minion DHF in front, Rekon in rear).
- Dropper Post: ANZX 30.9 diameter dropper post with 150mm of travel.
- Motor: Yamaha PW-X3 center-mounted motor with quad sensor system and automatic support and walk assist modes.
- Max Torque: 85 Nm.
- Rated Power: 250W (nominal), 500W (maximum).
- Battery: Yamaha 500Wh battery with charge-life indicator and self-diagnosis display.
- Weight: 6.61 lb.
- Charge Time: 80% in 1 hour, 100% in 4 hours.
- Display: Yamaha Interface X with multiple support modes, Bluetooth connectivity, and cycling function display.
- Max Speed Support: 20 mph.
- Top Tube Length: 619 mm (24.4 in).
- Reach: 478 mm (18.8 in).
- Head Tube Length: 120 mm (4.7 in).
- Seat Tube Length: 405 mm (15.9 in).
- Stack Height: 625 mm (24.6 in).
- Standover Height: 751 mm (29.6 in).
- Wheelbase: 1,206 mm (47.5 in).
- Weight: 51.1 lb.
- 5-year warranty on the frame, motor, and battery.
Price may not include freight, setup and other applicable fee.
